Quick Details

  • Certification: CE ROHS, CE ROHS, UL listed driver
  • Type: led rgb panel light
  • Dimension: 595*595*10mm
  • Work voltage: 100-240VAC
  • LED type/qty: RGB /156leds
  • Color: RGB R:620-630nm G:515-525nm B:465-470nm
  • Power: 36w
  • Bean Angle: 170
  • Controller type: RF 2.4G
  • Packing: 6pieces/carton
  • Warranty: 3-5 years

Packaging & Delivery

Packaging Details 2pieces/inner box,6pieces/carton
NW:20.4kg,GW:24.5kg
Carton size:L720*W210*H670MM
Delivery Time Shipped in 5 days after payment

RGB LED Panel light led ceiling panel light 36w 600*600mm led rgb panel

Product Description

  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel

  • Parameter of LED rgb panel light
  • Dimension:600*600*10mm
  • Work voltage:100-240VAC,DC12V
  • Power:36W
  • Color:RGB  R:620-630nm G:515-525nm B:465-470nm
  • Beam angle:120
  • Packing:6pieces/carton

Features for  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel

  •   RGB full color
  •   Anodic Oxidation Sliver Frame/Spray White Frame optional
  •   16 Colors, with wireless remote control
  •   Excellent light-emitting uniformity with 8 years abundant light design experience
  •   Special barcode offered for retails and wholesal

Smart RF control system for  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel

  • Use 2.4GHz RGB control system, anti interference ability
  • Without mutual interference between controllers
  • It can adjust the brightness and colors in the same time
  • 20 Types of multiple flashing modes available
  • Wireless remote control distance can reach 25-30 meter

Available size for  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel



Part No.

L(mm)

W(mm)

H(mm)

YLL-PB07XX

295

295

10

YLL-PB09XX

295

595

10

YLL-PB08XX

595

595

10

YLL-PB10XX

295

1195

10

YLL-PB11XX

595

1195

10

Item No.

Power(W)

Voltage

Led type/Qty

Wave Length

Beam Angle

N.W/Kg

Warranty

YLL-PB07XX

18±5%





AC100-240
DC12V

RGB/72pc





R:620-630nm

G:515-525nm

B:465-470nm







170°

1.3





3 years

YLL-PB09XX

34±5%

RGB/156pc

1.9

YLL-PB08XX

36±5%

RGB/156pc

3.4

YLL-PB10XX

48±5%

RGB/300pc

3.6

YLL-PB11XX

48±5%

RGB300pc

6.0

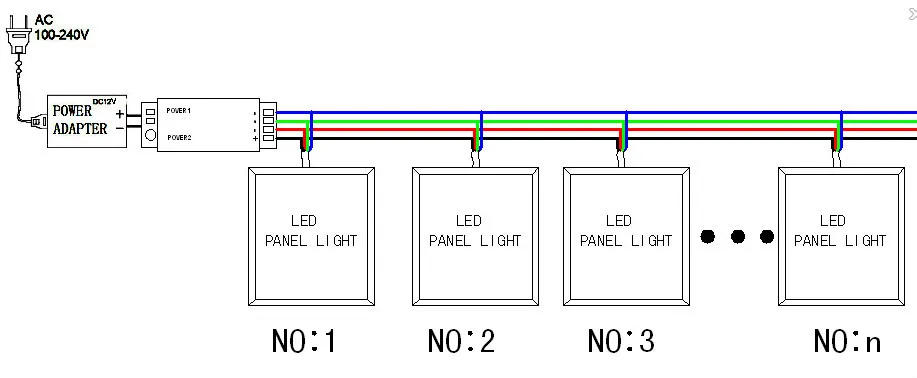

The maximum connection Qty of RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel



YLL-PB07XX

295*295*12mm

8pcs

YLL-PB09XX

295*595*12mm

4pcs

YLL-PB08XX

595*595*12mm

4pcs

YLL-PB10XX

295*1195*12mm

3pcs

YLL-PB11XX

595*1195*12mm

3pcs

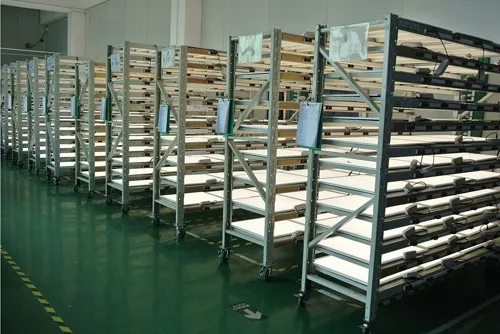

Aging test before shipment to ensure the quality

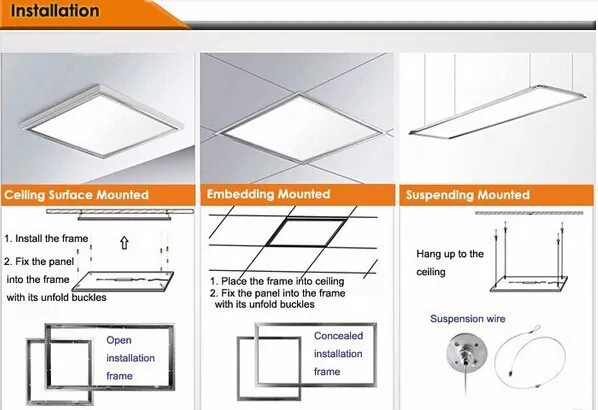

Installation method for  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb pane


Areas of application of  RGB LED Panel light  led ceiling panel light 36w 600*600mm led rgb panel

  • Dancing pubs
  • window gallery lighting
  • Hotels/Furniture lighting
Packaging & Shipping



Item No.

Dimension

Qty/Carton

N.W/Carton

G.W/Carton

Carton size

YLL-PB07XX

295*295*12mm

12PCS

15.6kg

18.5kg

L420*W405*H365MM

YLL-PB09XX

295*595*12mm

8PCS

15.2kg

19kg

L655*W275*H410MM

YLL-PB08XX

595*595*12mm

6PCS

20.4kg

24.5kg

L720*W210*H670MM

YLL-PB10XX

295*1195*12mm

6PCS

21.6kg

25kg

L1340*W240*H350mm

YLL-PB11XX

595*1195*12mm

3PCS

18kg

21kg

L1340*W190*H675mm



Payment: L/C,T/T,Western Union, Escrow service, Alibaba Trade Assurance,PayPal

Shipment: TNT/ DHL/ EMC/ FedEx/ By Air/ By Sea or according to customer's requirements

 Lead time: 3~5workdays for sample order<100pieces

                   10~15workdays for formal order<500pieces
                   20workdays for 40 HQ' container order

                   ODM/OEM Custom-made item will take longer time than standard model





FAQ

 1.Are you the facotry?

    Yes, we are the factory.



2.What's your delivery time?

   We are delivery time is 5-7 working days for sample order.



3.What's your payment term?

   We are payment term is T/T, L/C, wester uion and paypal.



4.Do you have certification for the prodcuts?

   Yes, we do have certification for the products, CE, ROHS.



Company Information



CART Lighting is committed to creating high-quality, affordable, well-designed and energy-efficient LED lighting  that make it easy for customers to sell,electricians to install and end-users to save energy,

CART also provides lighting design services to anyone who needs assistance.

CART established in 2001,we located in Silicon Valley Power Industrial Park Guanlan Town,Shenzhen,China,CART has a building which Covering an area of 6000 sq.m,

CART certified by TUV according to ISO9001,and also Yuliang led panel&led tube certified by CE,RoHS tested by TUV company in German!

CART have its own packaging production line,more than 30 automatic production lines for LED well-designed, professional grade lighting,our light source listed by energy star lm-80 certificate,as a result of our high quality products and outstanding customer service,we have gained a global sales network reaching German,Belgium,Canada and USA!
