Quick Details

  • Certification: CE
  • Type: dimmable led panel 600x600
  • Product name: 0-10v dimming led panel light 600x600
  • Size: 595*595*10mm
  • CCT: 2700-6500K
  • PF: 0.9
  • Beam angle: 160 degree
  • Frame: 6063 AL
  • CRI: >80
  • Light effect: 83lm/w
  • Net Weight(kgs): 3.2kgs
  • Warranty: 3 years

Packaging & Delivery

Packaging Details 1pc to one inner box,6pcs inner boxes to one carton
NW:19.56KGS GW:23.48KGS Carton Size:650*260*680mm.
Delivery Time 7-14 days

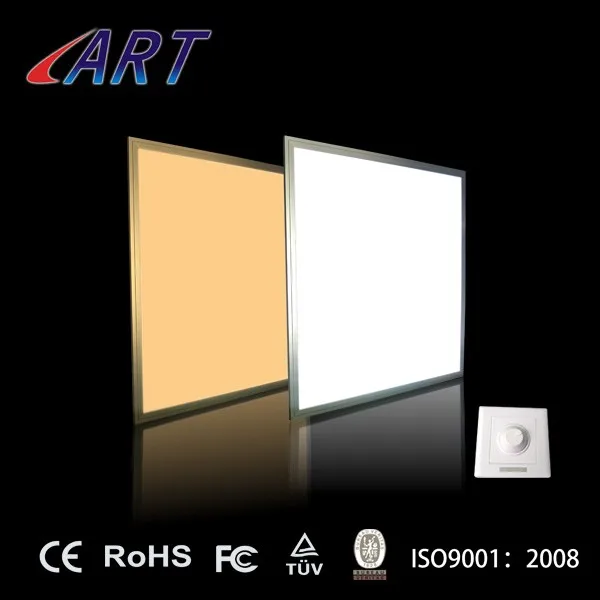

0-10v dimming led panel light 600x600



Product Description

 Specfications

Item NO.

LED Type/QTY

Power

CCT

PF

CRI

Light efficiency

Lumen

Warranty

YPA043

 (145*895mm)

SMD4014

264 LEDS

40W ±5%

2700-6500K

0.95

Ra>80

84lm/W

3350

3-years

YPA044

(295*295mm)

SMD4014

96 LEDS

18W ±5%

84lm/W

1500

YPA045

(295*595m)

SMD4014

192 LEDS

36W ±5%

86lm/W

3100

YPA046

(295*1195mm

SMD4014

360 LEDS

60W ±5%

85lm/W

5100

YPA047

(595*595mm)

SMD4014

192 LEDS

36W ±5%

83lm/W

3000

YPA048

(595*1195mm)

SMD4014

360 LEDS

60W ±5%

78lm/W

4700



Beam Angle             Led lifespan        Protection Level                     Materials

160°                       >50,000Hrs            IP50                   Al Frame+ PMMA GLP+PS Diffuser Plate



YPA043             YPA044             YPA045              YPA046            YPA047             YPA048

1.6kg                1.2Kg               1.8Kg             3.3Kg              3.4Kg            7.2Kg





Features for 0-10v dimming led panel light 600x600

>>COMPETITIVE ADVANTAGES



1.High effeciency,low light decay 6000hrs<10% .                                                                                                       2.More uniformity of luminance.

3.Exquisite appearance,ultra slim 10mm thickness.

4.Light source 4014smd,with good concentrated and uniform luminance,listed by LM-80 certificate.

5.Imported PMMA panels, transmittance more than 92%,UGR<19.

6.6063 aluminum frame, specially wrinkle design in flank for better heat dissipation.

7.With strong connector,triangle hanging piece.

8.Unique back plate design,no light leak.

9.TUV/CE/RoHS/SAA/UL listed isolated driver.

10.Business solution Flexible offered for customers,with senior R&D engineer engaged in led panels for 10 years.









0-10V Brightness Dimmable

Power supply connection

One dimmer can control 30pcs led panel light



Installation Manual for 0-10v dimming led panel light 600x600





Packaging & Shipping

 Logistical Data



Part Number

Dimension (mm)

QTY/CTN

N.W(KG)/CTN

G.W(KG)/CTN

Packing size (mm)

YPA037

145*895*10mm

5pcs

7

8.5

1025*285*215mm

YPA038

295*295*10mm

5pcs

5

6.5

345*245*390mm

YPA039

295*595*10mm

5pcs

8

9.5

695*245*355mm

YPA040

295*1195*10mm

6pcs

22

23.5

1350*240*360mm

YPA041

595*595*10mm

6pcs

23.7

25

720*210*670 mm

YPA042

595*1195*10mm

5pcs

32.5

34

1325*285*670mm









Application for 0-10v dimming led panel light 600x600

  • Supermarket
  • Hotel
  • Entertainment venues
  • Subway station
  • Showroom





Our Services

  Our company will send free products to you if caused from defects in materials and workmanship for a period of three years.



Quality Warranty:



Our products are strictly controlled by every process of production to ensure quality is good.



1.IQC(raw material quality control)



2.IPQC(on production quality control)



3.FQC(finished product quality control)



4.OQC(delivery product quality control)







Certificate

















Company Information



Shenzhen Yuliang Optoelectronic Technology Co.,Ltd as a professional manufacturer of led source and led lights which established more than 13 years,meet TUV ISO9001:2008,focus on led panel lights more than 8 years,

our senior R&D engineers have more than 10 years led industry experience ,with our best solutions and after sales serviceYLL products are welcomed by worldwide customers.
