Quick Details

  • Light Source: LED
  • Item Type: Panel Lights
  • LED Light Source: SMD4014
  • Warranty(Years): 3
  • Input Voltage(V): AC100-240V
  • Lamp Power(W): 48
  • Lamp Luminous Flux(lm): 3600
  • Lamp Luminous Efficiency(lm/w): 100
  • CRI (Ra>): 80
  • Color Temperature(CCT): 2800-6500k optional
  • Working Temperature(℃): -20 - +50
  • Working Lifetime(Hour): 50000
  • Lamp Body Material: aluminum +PMMA
  • IP Rating: IP44
  • Certification: CE, EMC, GOST, GS, RoHS, SAA, UL
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: CART
  • Model Number: MB1606048.N00
  • key words: 60W led panel light
  • FRAME: Aluminum+PMMA
  • THICKESS: 10mm
  • LGP: pmma
  • function: 0-10V dimmable
  • OME/ODM: yes
  • LED brand: epistar
  • thickness: 10MM ultra slim
  • beam angle: 170 degree
  • flicker: free

Packaging & Delivery

Packaging Details 6 led panels light/Carton
Carton Size: 345*245*390mm,
Gross weight: 6.5 kg/carton
Delivery Time 7--15 days as usual

 CART 600X1200 48w 72w 110lm 3/5 years warranty LED surface panel light 0-10V dimmable led panel light



Product Description

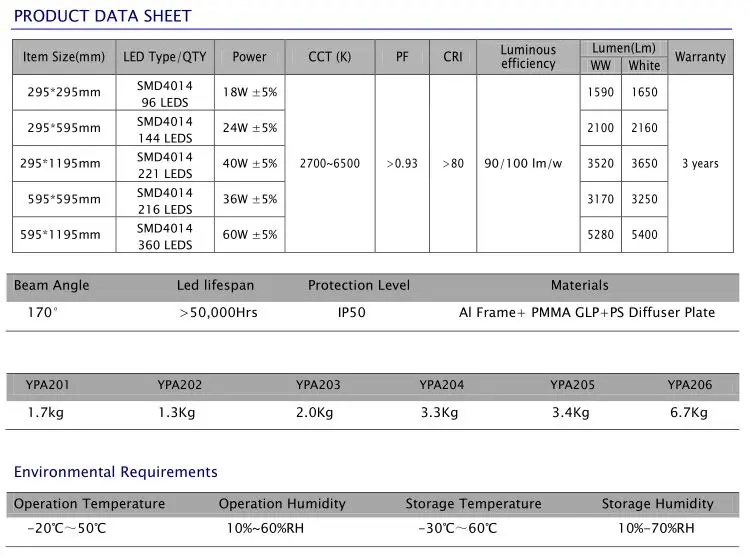

LED panel specification !


hanging installation way !


YLL-CART exporting panel light FEATURES>>

1. 90-110lm/w High efficiency ,Epistar led chip as light source, more stable and long life.

2. Well compatible driver , wide input Voltage range AC100--240v optional, Harmonic Wave <18, suitable using for worldwide.

3.High Safety performance,UL-listed isolated driver,  anti electric shock ensures safety..

4. Aluminum alloy  frame, better heat Dissipation ,strong enough,  NO deformation.

5.Application in the design for concise interior space, using imported Mitsubishi

PMMA light guide,  indirect lighting for downy light ,light more uniform, and visually comfortable.

6. less weight itself , more convenient for install and replacement.

7.Perfectly meet CE&ROHS standard , Environmental protectionsafety, No pollution .

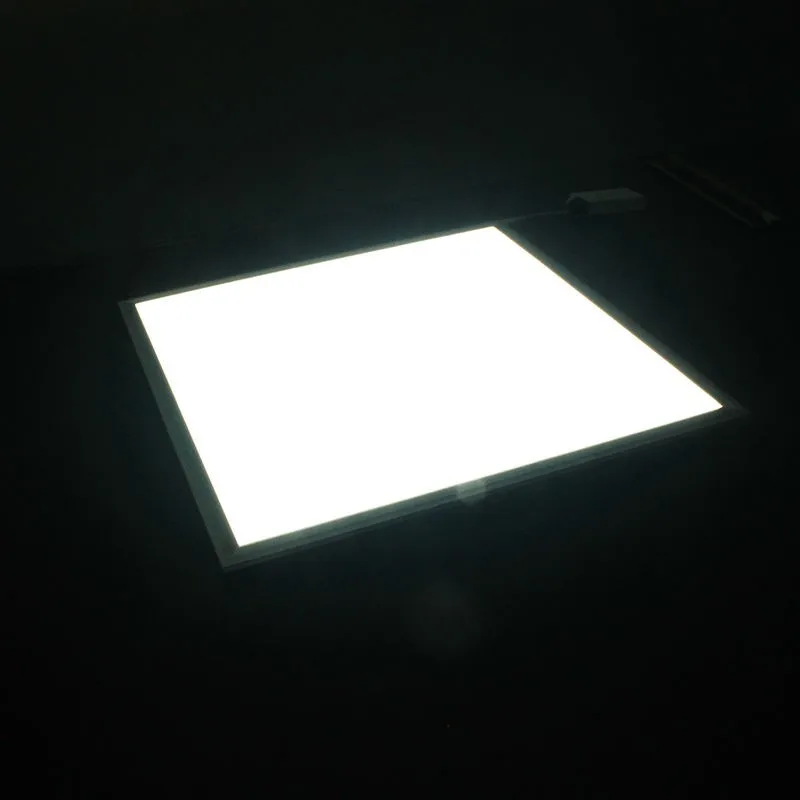

 test report about the panel lighting !





our CRI/RA>80, you can have a clear viewing of the objects !

















600x1200mm or 2x4 size





note:

1. This product should be installed by trained electricians
2. Check integrality of the products when unpack the packing

3. The  distance  between  the  light  and  any  flammable  materials  must  not  be less than 0.2m.

 4. The distance between the upper part of the installed light and
 the ceiling must not be less than 2cm.The light must not be installed into ceilings or walls that contain heat-insulating material.
5. The main cable must not connect with the low voltage cable or the surface- mounted lights.
6. Guide the lights’connecting cables through the drilled-out hole, and fix the  surface-mounted lights with the pre-fitted clips.Make sure that these are securely connected to the base material.

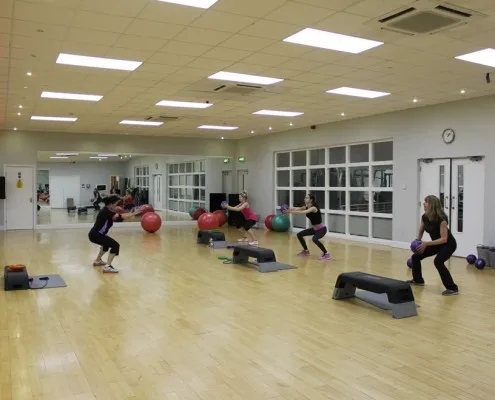

APPLICATION >>


*COMMERCIAL LIGHTING
OFFICE,SUPERMARKET, HOTEL,EXHIBITION HALL, ETC.
*PUBLIC LIGHTING
RESIDE NCE,LIBRARY,HOSPITALS,SCHOOL , MTR STATION,TRAIN STATION,  BUS STATION,AIRPORT,ETC.
*INDUSTRIAL LIGHTING
FACTORY,WAREHOUSE,ETC.




Packaging & Shipping



also, we can pack the panel light as your requirement if you have special requirements, and can print your logo in the panel light, also as well as the package box.



NO.

Model

Dimension

     PCS/CTN

N.W/CTN

G.W/CTN

CTN dimension /L*W*H(mm)

1

CART-PK02

295*295*10mm

10

16

18.5

370*440*410mm

2

CART-PK03

295*595*10mm

8

17

20.5

670*360*400mm

3

CART-PK04

295*1195*10mm

6

23.5

28.5

1270*280*400mm

4

CART-PK05

595*595*10mm

6

25

30

 670*280*700mm

5

CART-PK06

595*1195*10mm

3

22.5

27

 1270*160*700mm



YLL-CART square 600*600 panel light Shipment :



Shipment for Cool White panel light :

1)Shipment by express:DHL,UPS,FEDEX(door to door service)we working wth their for more than 5years,so we can get the best price with best service.

2)Shipment by Air:considering the expensive international freight,shipment by air is the good choice if the goods more than 100KG,note:it is door to airport,you need pick up the goods to airport ^ ^.

3)Shipment by SEA:It is cheapest shipment way,people always choose it when the goods weight more 1-2CBM at least,by the way,it is door to port,you have to pick up the goods to the port.

Company Information







WHO ARE WE?

C-ART LED is one of the top factory which specializing in LED packaging, Indoor and Outdoor lighting located in Shenzhen since 2001. With more than 200 staffs and about 6,000 square workshops. We are aiming to lowering mutual business risk, mutual profits with top quality products, reasonable prices and first class service. We owe our success to simple, but effective formula: high quality products, speedy service, backed up by friendly customer service and comprehensive warranty policy.

WHY Choose US?

» SPEEDY DELIVERY

We are factory. All products are held in-stock so that we can offer you a fast and reliable service to all customers. Order less than 1000sets today, you can have your new LED lighting in 7-15days.



» REASONABLE PRICES

We are big LED manufacturer in Shenzhen since 2001. We do LED packaging by ourselves, so we can control every process of the LED light source and the light efficiency of the whole lighting products, also LEDs cost as well.





» UNBEATABLE SERVICE

We are always happy to help whatever the query and how complex it might be,please email us at yll-sales10 at yuliangled.cn

 » QUALITY PRODUCTS

We have sophisticated R&D Team and QC Team. All the products must have been undergone strict quality control for more than twice before sending it to customers.

» BUY WITH CONFIDENCE

We offer a 30 day no-quibble money-back guarantee and 3-5 years warranty so you can buy with confidence. During the warranty period, any quality probles, you can return them to us for replacement or refund.

FAQ

 1. What is the general business process?

Answer : Send Inquiry to  YLL → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service



2. What is the warranty for the Cool White panel light  ?

Answer : 3~5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.



3. What is the payment term?

Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable



4. Can you offer free samples?

Answer : No, but sample fee can be refunded depending on the coming order amount.



5. Can I add my logo on the product label?

Answer : Yes, but order quantity is requested depending on different lights.



6. I don’t know how many led tube light should I use, can you advise?

Answer : Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
